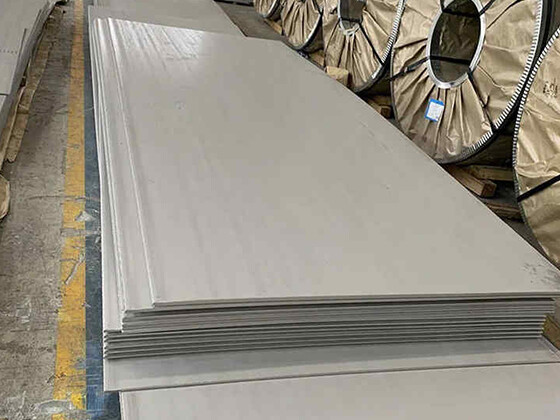

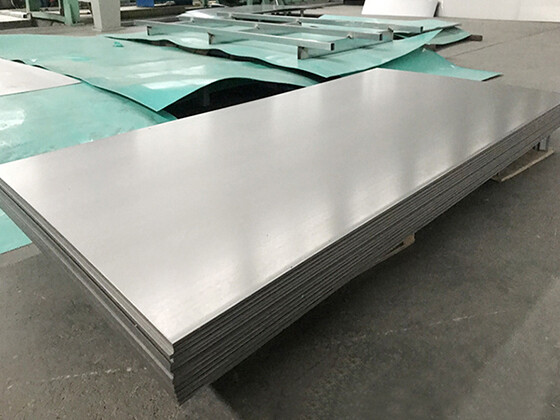

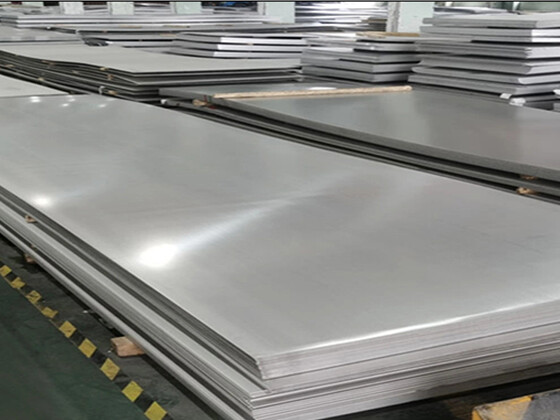

Quality hot rolled duplex stainless steel sheet

Product type: S32205(022Cr23Ni5Mo3N),2205，S2304,2520,201/201,2507,S32750(022Cr25Ni7Mo4N),S32760(022Cr25Ni7Mo4WCuN) etc
Cold-rolled duplex stainless steel has high strength, good resistance to stress corrosion, pitting corrosion, good welding performance, and has a wide range of applications in petrochemical, shipbuilding, papermaking, seawater desalination, nuclear power and other fields.

Tel:+86 18102026584

Whatsapp:8618102026584

E-mail

Contact us

Product details

Duplex stainless steel has the characteristics of austenitic stainless steel and ferritic stainless steel because of its austenitic + ferritic biphase structure, and the content of the two phase structures is basically equivalent. The yield strength can reach 400Mpa ~ 550MPa, which is twice that of ordinary austenitic stainless steel. Compared with ferritic stainless steel, duplex stainless steel has higher toughness, lower brittleness transition temperature, and significantly improved intergranular corrosion resistance and weldability.

Product Name	Quality hot rolled duplex stainless steel sheet
Type	Plate
Thickness	Cold-rolled plate:0.3mm-3mm Hot-rolled plate:3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.

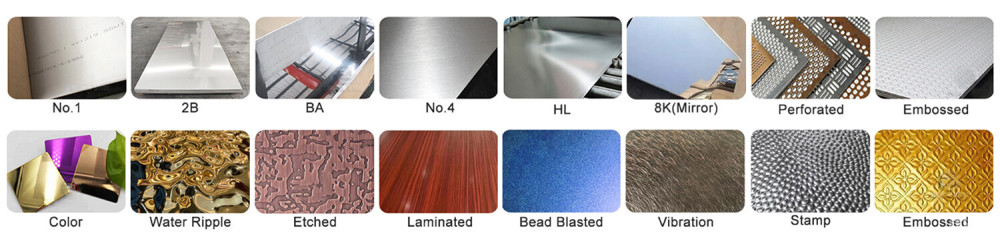

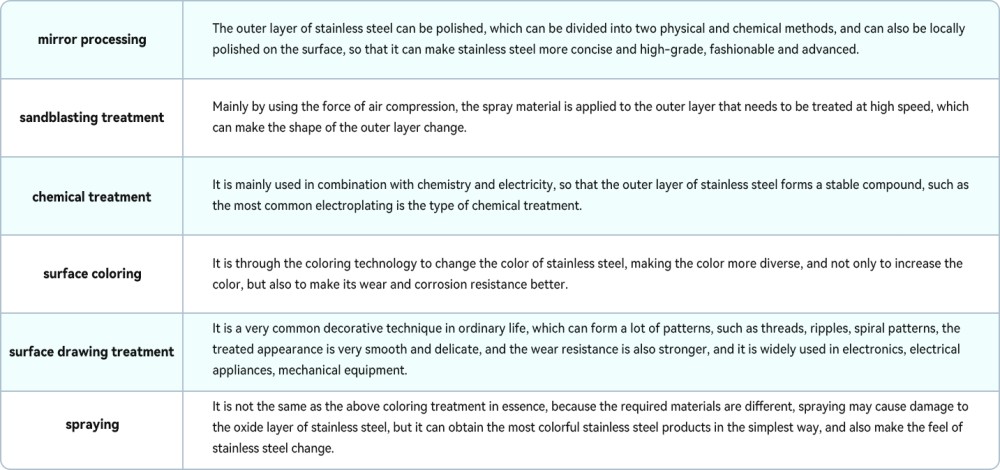

Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application	Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
Certificate	ISO, SGS, BV, etc.
Production Technology	Hot Rolling, Cold Rolling
Edge Processing	Edging, Trimming

Chemical composition of each grade:

Chemical composition	C	Si	Mn	Cr	Ni	Mo	S	P	N
2205	≤ 0.03	≤1.0	≤ 2.0	21.0～23.0	4.5～6.5	2.5～3.5	≤ 0.02	≤ 0.03	—
2507	≤ 0.03	≤1.0	≤ 2.0	21.0～23.0	4.5～6.5	2.5～3.5	≤ 0.02	≤ 0.03	—
2520	≤0.08	≤1.50	≤2.00	24.00-26.00	19.00-22.00	—	≤0.030	≤0.035	—
201	≤0.15	—	5.5～7.50	16.0～18.0	3.5-5.5	—	≤0.03	≤0.06	≤0.25
202	≤0.15	≤1.0	≤7.5~10.0	17.0-19.0	4.00-6.00	—	≤0.03	≤0.06	≤0.25

Performance data of various grades of metal (for reference only) :

Mechanical Properties	Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
2205	≥620	≥450	≥25	≤ 293HB
2507	≥795	≥550	≥15	≤ 310HB

Physical properties of each grade:

Physical Performance	Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
2205	7.88	190	13.7	19	80
2507	7.75	200	13	17	80

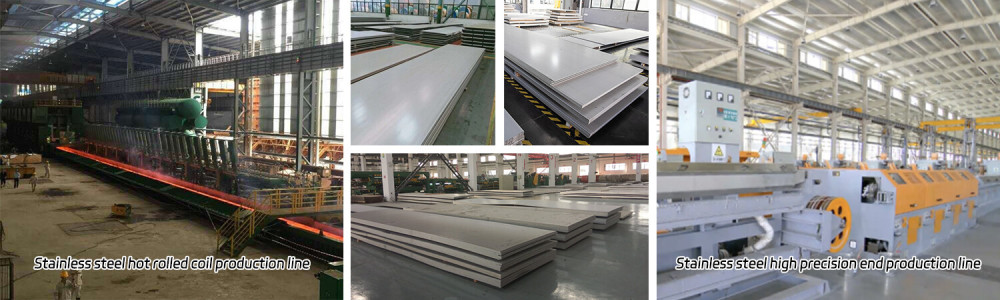

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
