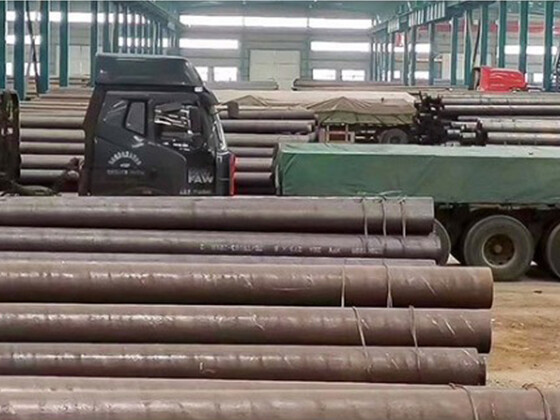

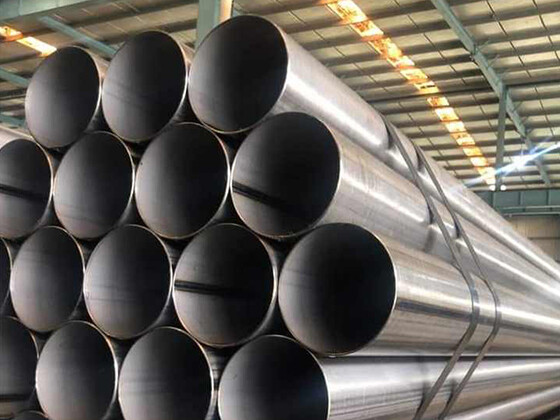

JIS G3456/G3461 Straight seam welded pipe
JIS is the most important and authoritative of Japan's national standards. According to the provisions of the Japanese Industrial Standardization Law, JIS standard objects in addition to the formulation of special standards or technical specifications for drugs, pesticides, chemical fertilizers, silk, food and other agricultural and forestry products, but also involve various industrial fields.
Tel:+86 18102185984
Whatsapp:8618102185984
E-mail
Contact us
PRODUCTS

All steel products are available worldwide

Product details

Product information：

Product Name

JIS G3456/G3461 Straight seam welded pipe

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI etc.

More material type

10#  20#  45#  Q235  20G  20MnG  25MnGa36  a36  A53 A106  A333 A335 A336 A179 S235 S355 SA179 SA192 SA210 SA179
DIN17175 DIN2391 DIN16229 Q235  Q195  Q345  16Mn  20Cr  40Cr  12CrMo  15CrMo  20CrMo  30-35CrMo  42CrMo
STPY41  STPG38  STB30  STB33  STB35  STPT42  St35  St37  St44  St45.8  15Mo3  13CrMo44  10CrMo910

Outer Diameter

Seamless: 1/4"-36"

Welding: 21.3mm-3620mm

Round Tube: 1/2"-10"

Square Tube/Rectangular Tube: 15x15mm-400x600mm

Wall Thickness

Seamless: 1.25mm-50mm

Welding: 1.65mm-65mm

Length

3-12 meters, Support customization

Surface Process

Bright, Polished, Black

Certificate

CE, tisi, KS, JIS, GS, ISO9001

Delivery Time

within 7 days

Other Services

Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.




Chemical Composition（%）

A53

Grade

C

Mn

P

S

Cu

Ni

Cr

Mo

V

TypeS(Seamless)

A

0.25

0.95

0.05

0.05

0.4

0.4

0.4

0.15

0.08

B

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08

TypeE(Resistance Welding)

A

0.25

0.95

0.05

0.05

0.4

0.4

0.4

0.15

0.08

B

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08

TypeF(Furnace Welding)

A

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08


Mechanical Properties

A53

GradeA

GradeB

Tensile Strength Min.psi(MPa)

48,000(330)

60,000(415)

Yield Strength Min.psi(MPa)

30,000(205)

35,000(240)

Physical Performance

Density 20°CKg/dm³

Modulus of Elasticity Kn/² mm

Coefficient of Thermal Conductivity 20°CW/m K

Heat Capacity 20°CJ/kg K

Resistivity 20°CΩmm²/m

20C°

300C°

400C°

450C°

7.85

210

192

184

179

51

461

0.2


-------------------------------------------------------------------------------------------------

Chemical Composition(%)

A106

C

Mn

P

S

Si

Cr

Cu

Mo

Ni

V

GradeA

0.25

0.27-0.93

0.035

0.035

0.1

0.4

0.4

0.15

0.4

0.08

GradeB

0.3

0.29-1.06

0.035

0.035

0.1

0.4

0.4

0.15

0.4

0.08

GradeC

0.35

0.29-1.06

0.035

0.035

0.1

0.4

0.4

0.15

0.4

0.08


Mechanical Properties

A106

GradeA

GradeB

GradeC

Tensile Strength min.psi

48,000

60,000

70,000

Yield Strength min.psi

30,000

35,000

40,000



Scope of Application

ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers and ships. These pipes must transport fluids and gases with high temperature and pressure levels.

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
