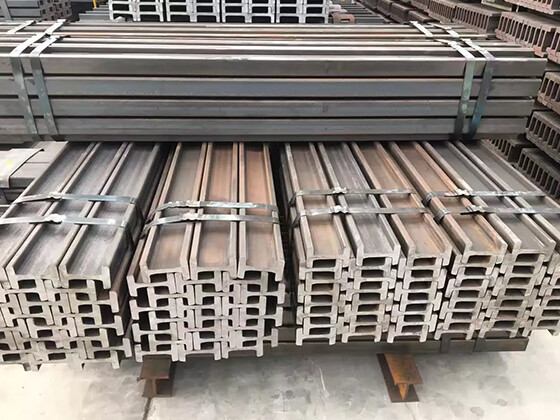

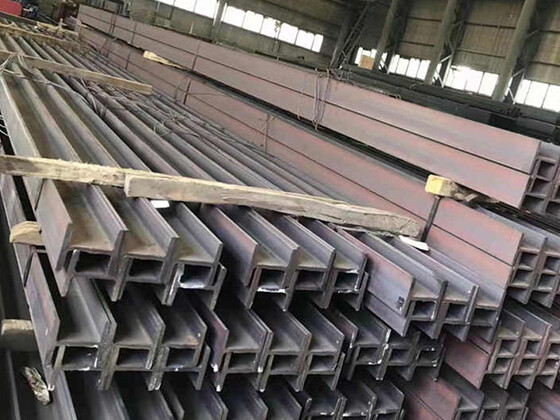

Carbon steel I-shaped steel

Hot brand：A36, St37, S235J0, S235J2, St52, S355JR, Q195, Q215, Q235B, Q345B,S235JR,S355JR,S355, SS440, SM400A, SM400B, A572 GR50/GR60, SS540，etc.
I-shaped steel is a new type of economic construction steel. The section shape of I-beam steel is economical and reasonable, the mechanical properties are good, the section points on the rolling section extension is more uniform, the internal stress is less, and compared with ordinary I-beam steel, it has the advantages of large section modulus, light weight and metal saving.

Tel:+86 18102185984

Whatsapp:8618102185984

E-mail

Contact us

Product details

Product information：

Material	A36, St37, S235J0, S235J2, St52, S355JR, Q195, Q215, Q235B, Q345B, S235JR,S355JR,S355, SS440, SM400A, SM400B, A572 GR50/GR60, SS540
Material
Scope of Production	H100100-H400400, H15075 -H900300
Length	6m, 9m, 12m or acording to customer requirements
Technology	Hot Rolled, Welded
Standard	ASTM, AISI, JIS, GB, DIN, EN
Surface	Galvanized, Painted or according to your requirements
Supply Capacity	2000 tons/Day
Business Type	Manufacturer
Certificate	ISO, SGS, BV
Application	Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
Loading Port	Any port in China
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

Standard weight chart, specifications for H-beam steel

For specific standards, H-beam steel includes the parameters:

H: height of the steel column
B: width of the steel flange
t1: thickness of the steel web
t2: thickness of the steel flange
L: length of the steel column
W: steel weight, calculated in Kg/m

Nominal	Standard size and thickness
Size	Standard size and thickness
(mm)	H (mm)	B (mm)	t1(mm)	t2 (mm)	L (m)	W (kg/m)
100X50	100	50	5	7	6/12	9,3
100X100	100	100	6	8	6/12	17,2
125X125	125	125	6,5	9	6/12	23,8
150X75	150	75	5	7	6/12	14
150X100	148	100	6	9	6/12	21,1
150X150	150	150	7	10	6/12	31,5
175X175	175	175	7,5	11	6/12	40,2
200X100	198	99	4,5	7	6/12	18,2
200X100	200	100	5,5	8	6/12	21,3
200X150	194	150	6	9	6/12	30,6
200X200	200	200	8	12	6/12	49,9
	200	204	12	12	6/12	56,2
	208	202	10	16	6/12	65,7
250×125	248	124	5	8	6/12	25,7
250×125	250	125	6	9	6/12	29,6
250×175	250	175	7	11	6/12	44,1
250×250	244	252	11	11	6/12	64,4
	248	249	8	13	6/12	66,5
	250	250	9	14	6/12	72,4
	250	255	14	14	6/12	82,2
300×150	298	149	5,5	8	6/12	32
300×150	300	150	6,5	9	6/12	36,7
300×200	294	200	8	12	6/12	56,8
300×200	298	201	9	14	6/12	65,4
300×300	294	302	12	12	6/12	84,5
	298	299	9	14	6/12	87
	300	300	10	15	6/12	94
	300	305	15	15	6/12	106
	304	301	11	17	6/12	106
350×175	346	174	6	9	6/12	41,4
	350	175	7	11	6/12	49,6
	354	176	8	13	6/12	57,8
350×250	336	249	8	12	6/12	69,2
350×250	340	250	9	14	6/12	79,7
350×350	338	351	13	13	6/12	106
	344	348	10	16	6/12	115
	344	354	16	16	6/12	131
	350	350	12	19	6/12	137
	350	357	19	19	6/12	156
400×200	396	199	7	11	6/12	56,6
	400	200	8	13	6/12	66
	404	201	9	15	6/12	75,5
400×300	386	299	9	14	6/12	94,3
400×300	390	300	10	16	6/12	107
400×400	388	402	15	15	6/12	140
	394	398	11	18	6/12	147
	394	405	18	18	6/12	168
	400	400	13	21	6/12	172
	400	408	21	21	6/12	197
	414	405	18	28	6/12	232
450X200	446	199	8	12	6/12	66,2
	450	200	9	14	6/12	76
	456	201	10	17	6/12	88,9
450X300	434	299	10	15	6/12	106
	440	300	11	18	6/12	124
	446	302	13	21	6/12	145
500X200	496	199	9	14	6/12	79,5
	500	200	10	16	6/12	89,6
	506	201	11	19	6/12	103
500X300	482	300	11	15	6/12	114
	488	300	11	18	6/12	128
	494	302	13	21	6/12	150
600X200	596	199	10	15	6/12	94,6
	600	200	11	17	6/12	106
	606	201	12	20	6/12	120
	612	202	13	23	6/12	134
600X300	582	300	12	17	6/12	137
	588	300	12	20	6/12	151
	594	302	14	23	6/12	175
700X300	692	300	13	20	6/12	166
700X300	700	300	13	24	6/12	185
800X300	792	300	14	22	6/12	191
800X300	800	300	14	26	6/12	210
900×300	890	299	15	23	6/12	210
	900	300	16	28	6/12	243
	912	302	18	34	6/12	286

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
