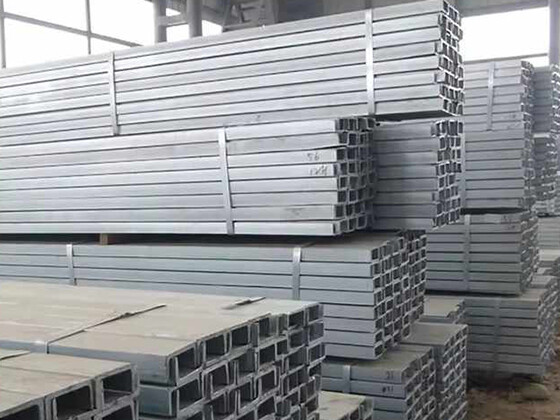

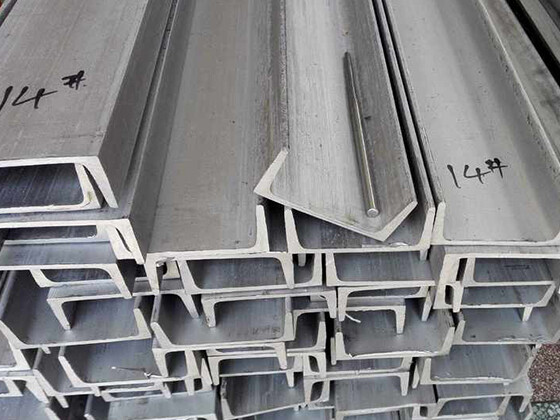

Quality stainless steel channel
Product type: 304/304L/304H, 316/316L/316Ti, 317/317L,321/347/347H, etc
Stainless steel with its good corrosion resistance and good appearance, is widely used in heavy industry, light industry, daily necessities industry and building decoration and other industries have been widely used.
Tel:+86 18102185984
Whatsapp:8618102185984
E-mail
Contact us
PRODUCTS

All steel products are available worldwide

Product details

Product Parameters

Product NameQuality stainless steel channel
Grade304, 304N, 310S, 410,  316L, 410L, 443, S32304, 430,  409L,, 445, 304L, 444, 301LN/Duplex stainless steel,etc
Size50*37*4.5-400*104*14.5,
75*40*3.8*7-152*76*6.4*9,
140*60*7*10-200*75*8.5*11.5
Length6m, 9m, 12m or according to customer requirements
TechnologyHot Rolled, Welded
StandardASTM, AISI, JIS, GB,DIN, EN
SurfaceGalvanized, Painted or according to your requirements
Supply Capacity2000 tons/Day
Business TypeManufacturer
CertificateISO, SGS, BV
ApplicationWidely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
Loading PortAny Port in China
PackagingStandard export packing or as your request
Payment MethodWire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.




Chemical composition of each grade:

Chemical compositionCSiMnCrNiSPMoTi
304≤ 0.08≤1.0≤ 2.018.0～20.08.0～10.5≤ 0.03≤ 0.035__
304L≤ 0.03≤1.0≤ 2.018.0～20.08.0～12.0≤ 0.03≤ 0.035__
316≤ 0.03≤ 0.75≤ 2.016.0～18.010.0～14.0≤ 0.03≤ 0.0452.0～3.0_
316L≤ 0.03≤1.0≤ 2.016.0～18.010.0～14.0≤ 0.03≤ 0.0452.0～3.0_
316Ti≤ 0.08≤1.0≤ 2.016.0～18.010.0～14.0≤ 0.03≤ 0.0452.0～3.00.5～0.7
317L≤ 0.035≤ 0.75≤ 2.018.0～20.011.0～15.0≤ 0.03≤ 0.043.0～4.0_
321≤ 0.08≤ 0.75≤ 2.017.0～19.09.0～12.0≤ 0.03≤ 0.045__
347≤ 0.08≤ 0.75≤ 2.018.0～20.09.0～13.0≤ 0.03≤ 0.04__


Performance data of various grades of metal (for reference only) :

Mechanical PropertiesTensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
304≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV
304L≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV
316≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
316L≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
316Ti≥515≥205≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
317L≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
321≥520≥205≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
347≥515≥205≥ 40≤ 201HB;≤ 95HRB


Physical properties of each grade:

Physical PerformanceDensity(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
3048.0319316.916.272
304L8.0319316.916.272
3167.991931616.274
316L7.991931616.274
316Ti7.991931616.274
317L7.991931616.279
3217.9219316.61672
3477.971931616.372



WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
