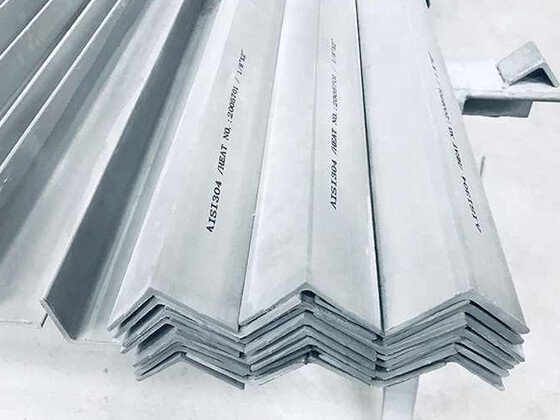

High quality Angle stainless steel

Product type: 304/304L/304H, 316/316L/316Ti, 317/317L,321/347/347H, etc
Stainless steel with its good corrosion resistance and good appearance, is widely used in heavy industry, light industry, daily necessities industry and building decoration and other industries have been widely used.

Tel:+86 18102185984

Whatsapp:8618102185984

E-mail

Contact us

Product details

Product Parameters

Product Name	High quality Angle stainless steel
Standard	ASTM A276,GB/T2101-89,GB9787-88/GB9788-88, JISG3192-94,DIN17100-80
Material	304,304L,316,316L,316LN,316TI,309S,310S,321,321H,347,329,305,201,410,420,430,440A,409,409L,etc.
Type	Equal angle steel,equal leg angle steel, unequal angle steel,unequal leg angle steel
Dimension	1.Size:2020mm~300300mm 2.Thickness:3mm~30mm
Length	6m, 1-6m or as required
Surface	Non polished finished,polished,bright,mill finish
Treatment	Hot rolled,cold rolled,welded
Package	Standard export seaworthy or as customers' requirements
Application	Stainless steel angle is ideal for all structural applications,and has a durable dull, grainy mill finish that is widely used for all types of fabrication projects that are exposed to the elements - chemical, acidic,fresh water, and salt water environments.
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

Chemical composition of each grade:

Chemical composition	C	Si	Mn	Cr	Ni	S	P	Mo	Ti
304	≤ 0.08	≤1.0	≤ 2.0	18.0～20.0	8.0～10.5	≤ 0.03	≤ 0.035	_	_
304L	≤ 0.03	≤1.0	≤ 2.0	18.0～20.0	8.0～12.0	≤ 0.03	≤ 0.035	_	_
316	≤ 0.03	≤ 0.75	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316L	≤ 0.03	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316Ti	≤ 0.08	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	0.5～0.7
317L	≤ 0.035	≤ 0.75	≤ 2.0	18.0～20.0	11.0～15.0	≤ 0.03	≤ 0.04	3.0～4.0	_
321	≤ 0.08	≤ 0.75	≤ 2.0	17.0～19.0	9.0～12.0	≤ 0.03	≤ 0.045	_	_
347	≤ 0.08	≤ 0.75	≤ 2.0	18.0～20.0	9.0～13.0	≤ 0.03	≤ 0.04	_	_

Performance data of various grades of metal (for reference only) :

Mechanical Properties	Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
304	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
304L	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
316	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316Ti	≥515	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
317L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
321	≥520	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
347	≥515	≥205	≥ 40	≤ 201HB;≤ 95HRB

Physical properties of each grade:

Physical Performance	Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
304	8.03	193	16.9	16.2	72
304L	8.03	193	16.9	16.2	72
316	7.99	193	16	16.2	74
316L	7.99	193	16	16.2	74
316Ti	7.99	193	16	16.2	74
317L	7.99	193	16	16.2	79
321	7.92	193	16.6	16	72
347	7.97	193	16	16.3	72

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.

TEST ITEMS
