Product details

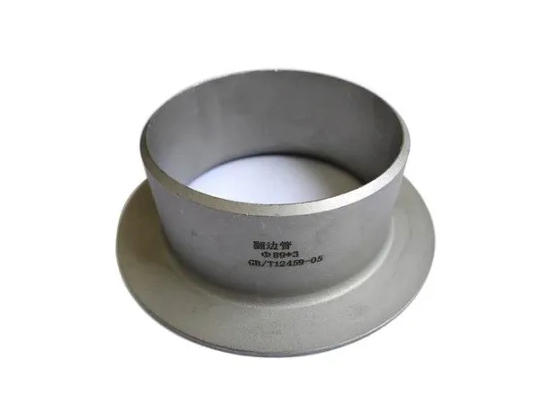

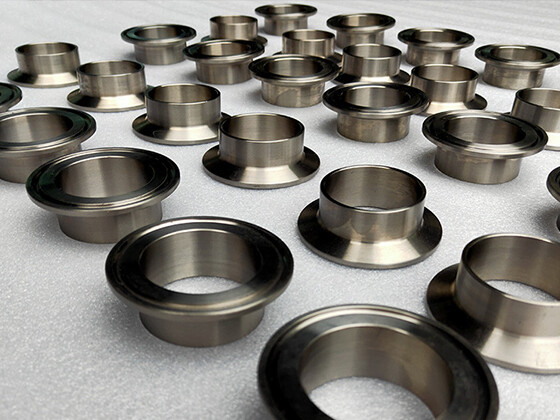

Stainless steel flanging joint related molding process and size specifications
Molding process:
For 1/2-16 (DN15-DN400) specifications, the use of integral cold-worked stainless steel flanging molding;
For 18-24 (DN450-DN600) specifications, argon arc welding is used to 2.

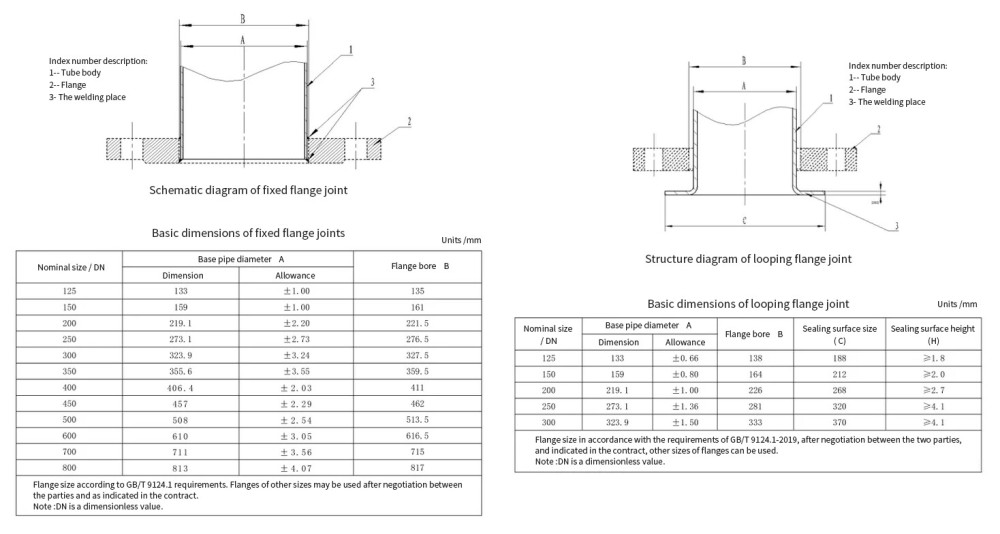

Size specification:
The size is 1/2-24 (DN15-DN600).
The standard is ASME B16.9, MSS SP-43, HG205099, HG20621, and the wall thickness is SCH5S-SCH40S.
Materials are 304, 304L, 321, 316, 316L stainless steel, carbon steel, alloy steel, etc.
Product Parameters
Application scenario of stainless steel flanged joint
Application of different media conditions:
When the corrosion performance of the medium is relatively strong, the part of the flange in contact with the medium is made of corrosion-resistant high-grade materials (such as stainless steel and other materials), and the sealing performance is achieved by clamping the external low-grade materials (such as the flange ring of carbon steel material), in which case the stainless steel flanging joint can play a role.
Applications in different industries:
It is widely used in food, pharmaceutical, chemical, beverage and other industries. The product is made of stainless steel, which can be used in beer industry, dairy industry, pharmaceutical industry, oil industry, chemical industry and machinery manufacturing.
The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1
Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.
The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
