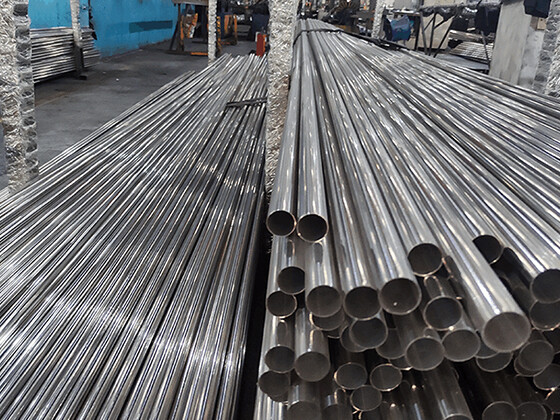

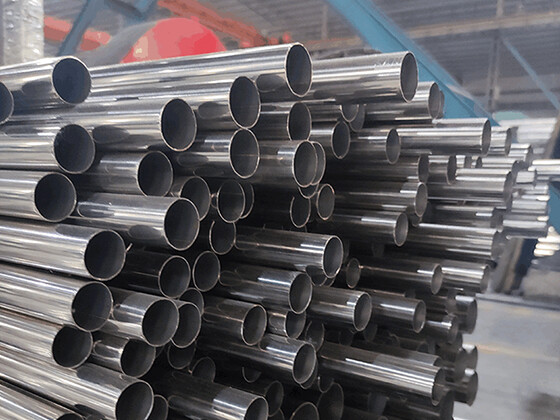

Welded decorative stainless steel pipe

Product type: 304/304L/304H, 316/316L/316Ti, 317/317L,321/347/347H, etc
Stainless steel with its good corrosion resistance and good appearance, is widely used in heavy industry, light industry, daily necessities industry and building decoration and other industries have been widely used.

Tel:+86 18102185984

Whatsapp:8618102185984

E-mail

Contact us

Product details

Stainless steel decorative pipe, as the name suggests, is used for decoration, and is normally used for balcony protection Windows, stair railings, bus stop railings, bathroom drying racks, etc.

The decorative stainless steel pipe is welded, and the raw material is steel strip, which is welded;Stainless steel decorative pipe in indoor use, generally use 201, 304 stainless steel material, outdoor environment is harsh or coastal areas will use 316 material, as long as the environment is not easy to cause oxidation rust。

Stainless steel decorative tube is normally bright tube, the surface is normal matte surface or mirror state, in addition, decorative tube also uses electroplating, painting, spraying and other processes for its surface a layer of more bright color.

Product Parameters

Product Name		Welded decorative stainless steel pipe
Type		Steel Pipe
Outer diameter	Round Tube	4mm-200mm
	Square Tube	1010mm-100100mm
	Rectangular Tube	1020mm-50100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of Application		Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications,Construction, Pharmaceuticals, Auto parts, etc.
Certificate		ISO, SGS, BV, etc.
Production Technology		Hot Rolling, Cold Rolling
Edge Processing		Edging, Trimming

Chemical composition of each grade:

Chemical composition	C	Si	Mn	Cr	Ni	S	P	Mo	Ti
304	≤ 0.08	≤1.0	≤ 2.0	18.0～20.0	8.0～10.5	≤ 0.03	≤ 0.035	_	_
304L	≤ 0.03	≤1.0	≤ 2.0	18.0～20.0	8.0～12.0	≤ 0.03	≤ 0.035	_	_
316	≤ 0.03	≤ 0.75	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316L	≤ 0.03	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316Ti	≤ 0.08	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	0.5～0.7
317L	≤ 0.035	≤ 0.75	≤ 2.0	18.0～20.0	11.0～15.0	≤ 0.03	≤ 0.04	3.0～4.0	_
321	≤ 0.08	≤ 0.75	≤ 2.0	17.0～19.0	9.0～12.0	≤ 0.03	≤ 0.045	_	_
347	≤ 0.08	≤ 0.75	≤ 2.0	18.0～20.0	9.0～13.0	≤ 0.03	≤ 0.04	_	_

Performance data of various grades of metal (for reference only) :

Mechanical Properties	Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
304	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
304L	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
316	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316Ti	≥515	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
317L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
321	≥520	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
347	≥515	≥205	≥ 40	≤ 201HB;≤ 95HRB

Physical properties of each grade:

Physical Performance	Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
304	8.03	193	16.9	16.2	72
304L	8.03	193	16.9	16.2	72
316	7.99	193	16	16.2	74
316L	7.99	193	16	16.2	74
316Ti	7.99	193	16	16.2	74
317L	7.99	193	16	16.2	79
321	7.92	193	16.6	16	72
347	7.97	193	16	16.3	72

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
