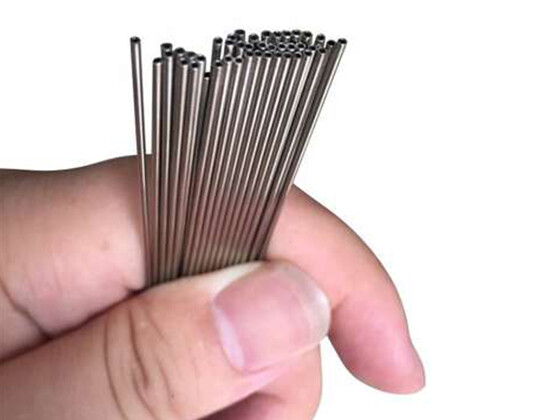

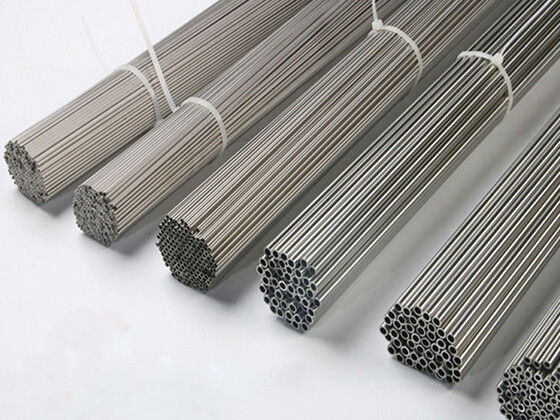

Stainless steel precision capillary tube

Product type: 304/304L/304H, 316/316L/316Ti, 317/317L,321/347/347H, etc
Stainless steel with its good corrosion resistance and good appearance, is widely used in heavy industry, light industry, daily necessities industry and building decoration and other industries have been widely used.

Tel:+86 18102185984

Whatsapp:8618102185984

E-mail

Contact us

Product details

Advantages of stainless steel capillaries

Good corrosion resistance: stainless steel capillaries have good corrosion resistance and can work normally at quite high temperatures and various strong corrosive media for a long time, especially in the environment of chemical media, especially when working in low temperature freezing environment, stainless steel capillaries must be used.

Good bending performance: stainless steel capillary has good bending performance, and its shape can be adjusted according to needs, which is easy to meet the needs of structural space.

High strength: Stainless steel capillaries have high strength and tensile strength than traditional stainless steel pipes, which can adapt to various application requirements.

Application of stainless steel capillaries

Petrochemical, chemical industry and other processes of conveying equipment, water treatment: stainless steel capillaries can be used for drinking water treatment and other water treatment processes, automotive industry: stainless steel capillaries can be used for automotive engine refrigeration systems, fuel systems, etc., air conditioning refrigeration: stainless steel capillaries can be used for air conditioning refrigeration systems, etc. Power: Stainless steel capillaries can be used in the power industry, such as hydropower stations, thermal power stations, etc.

Product Parameters

Product Name		Stainless steel precision capillary tube
Type		Steel Pipe
Round Tube		0.2mm-4.0mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of Application		Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications,Construction, Pharmaceuticals, Auto parts, etc.
Certificate		ISO, SGS, BV, etc.
Production Technology		Hot Rolling, Cold Rolling
Edge Processing		Edging, Trimming

Chemical composition of each grade:

Chemical composition	C	Si	Mn	Cr	Ni	S	P	Mo	Ti
304	≤ 0.08	≤1.0	≤ 2.0	18.0～20.0	8.0～10.5	≤ 0.03	≤ 0.035	_	_
304L	≤ 0.03	≤1.0	≤ 2.0	18.0～20.0	8.0～12.0	≤ 0.03	≤ 0.035	_	_
316	≤ 0.03	≤ 0.75	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316L	≤ 0.03	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316Ti	≤ 0.08	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	0.5～0.7
317L	≤ 0.035	≤ 0.75	≤ 2.0	18.0～20.0	11.0～15.0	≤ 0.03	≤ 0.04	3.0～4.0	_
321	≤ 0.08	≤ 0.75	≤ 2.0	17.0～19.0	9.0～12.0	≤ 0.03	≤ 0.045	_	_
347	≤ 0.08	≤ 0.75	≤ 2.0	18.0～20.0	9.0～13.0	≤ 0.03	≤ 0.04	_	_

Performance data of various grades of metal (for reference only) :

Mechanical Properties	Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
304	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
304L	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
316	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316Ti	≥515	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
317L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
321	≥520	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
347	≥515	≥205	≥ 40	≤ 201HB;≤ 95HRB

Physical properties of each grade:

Physical Performance	Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
304	8.03	193	16.9	16.2	72
304L	8.03	193	16.9	16.2	72
316	7.99	193	16	16.2	74
316L	7.99	193	16	16.2	74
316Ti	7.99	193	16	16.2	74
317L	7.99	193	16	16.2	79
321	7.92	193	16.6	16	72
347	7.97	193	16	16.3	72

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
