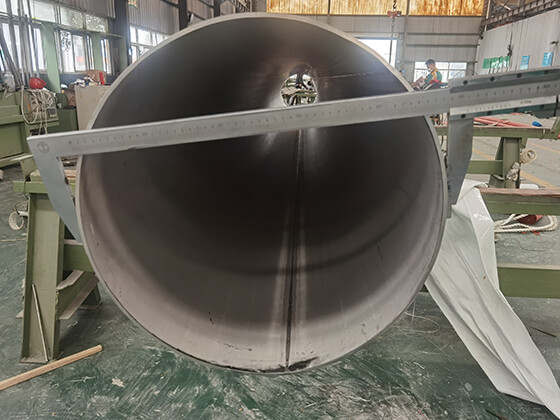

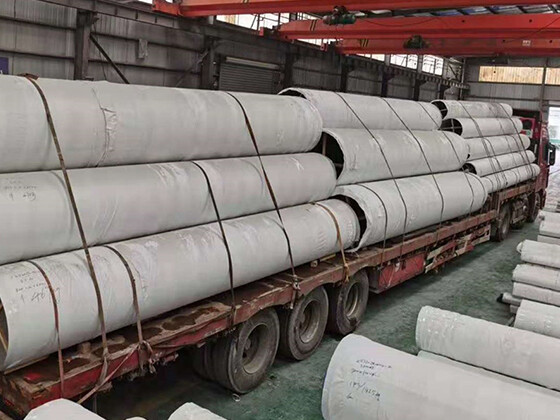

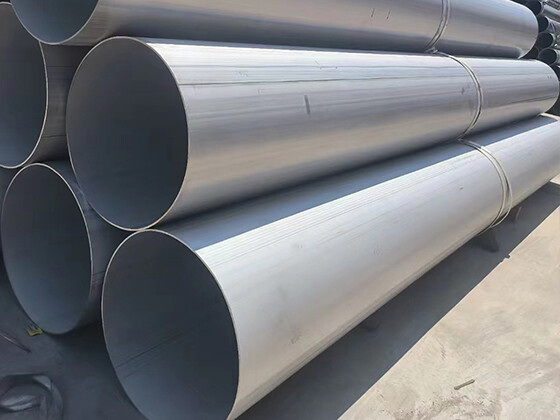

Large diameter stainless steel industrial pipe

Product type: 304/304L/304H, 316/316L/316Ti, 317/317L,321/347/347H, etc
Stainless steel with its good corrosion resistance and good appearance, is widely used in heavy industry, light industry, daily necessities industry and building decoration and other industries have been widely used.

Tel:+86 18102185984

Whatsapp:8618102185984

E-mail

Contact us

Product details

Industrial stainless steel pipes: Industrial stainless steel pipes mainly include 304, 304L, 316, 316L and other materials. These materials have the characteristics of corrosion resistance, high temperature resistance, pressure resistance, etc., and are widely used in petroleum, chemical industry, papermaking and other industrial fields.

The surface of the industrial pipe is normally acid white surface, that is, pickling surface, because the application environment of the pipe is more humid, high temperature, some objects have corrosion performance, so the anti-oxidation requirement is very high, so pickling passivation can generate a dense oxide film on the surface of the pipe, which greatly improves the corrosion resistance of the pipe. A small number will have black tubes, and sometimes the surface will be polished as needed.

Product Parameters

Product Name		Large diameter stainless steel industrial pipe
Type		Steel Pipe
Outer diameter	Round Tube	4mm-200mm
	Square Tube	1010mm-100100mm
	Rectangular Tube	1020mm-50100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of Application		Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications,Construction, Pharmaceuticals, Auto parts, etc.
Certificate		ISO, SGS, BV, etc.
Production Technology		Hot Rolling, Cold Rolling
Edge Processing		Edging, Trimming

Chemical composition of each grade:

Chemical composition	C	Si	Mn	Cr	Ni	S	P	Mo	Ti
304	≤ 0.08	≤1.0	≤ 2.0	18.0～20.0	8.0～10.5	≤ 0.03	≤ 0.035	_	_
304L	≤ 0.03	≤1.0	≤ 2.0	18.0～20.0	8.0～12.0	≤ 0.03	≤ 0.035	_	_
316	≤ 0.03	≤ 0.75	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316L	≤ 0.03	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316Ti	≤ 0.08	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	0.5～0.7
317L	≤ 0.035	≤ 0.75	≤ 2.0	18.0～20.0	11.0～15.0	≤ 0.03	≤ 0.04	3.0～4.0	_
321	≤ 0.08	≤ 0.75	≤ 2.0	17.0～19.0	9.0～12.0	≤ 0.03	≤ 0.045	_	_
347	≤ 0.08	≤ 0.75	≤ 2.0	18.0～20.0	9.0～13.0	≤ 0.03	≤ 0.04	_	_

Performance data of various grades of metal (for reference only) :

Mechanical Properties	Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
304	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
304L	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
316	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316Ti	≥515	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
317L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
321	≥520	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
347	≥515	≥205	≥ 40	≤ 201HB;≤ 95HRB

Physical properties of each grade:

Physical Performance	Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
304	8.03	193	16.9	16.2	72
304L	8.03	193	16.9	16.2	72
316	7.99	193	16	16.2	74
316L	7.99	193	16	16.2	74
316Ti	7.99	193	16	16.2	74
317L	7.99	193	16	16.2	79
321	7.92	193	16.6	16	72
347	7.97	193	16	16.3	72
