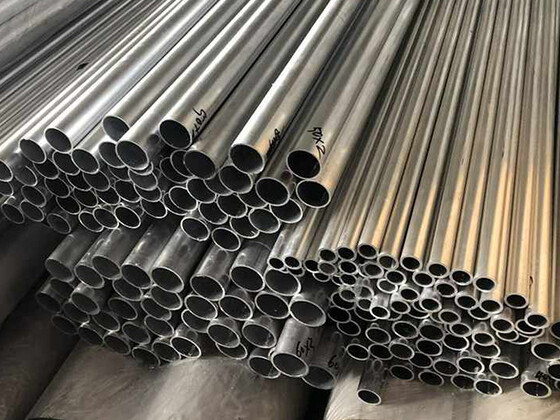

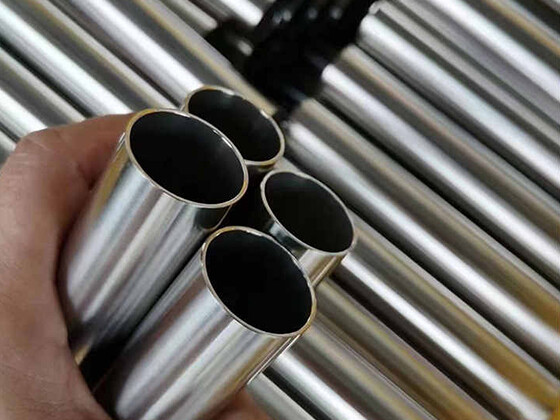

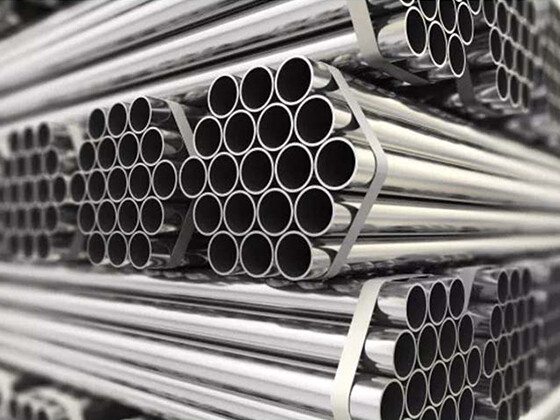

Cold-rolled seamless stainless steel pipe

Product type: 304/304L/304H, 316/316L/316Ti, 317/317L,321/347/347H, etc
Stainless steel with its good corrosion resistance and good appearance, is widely used in heavy industry, light industry, daily necessities industry and building decoration and other industries have been widely used.

Tel:+86 18102185984

Whatsapp:8618102185984

E-mail

Contact us

Product details

The main difference between hot rolled stainless steel pipe and cold rolled stainless steel pipe

1. The cold-rolled stainless steel pipe allows local buckling of the section, so that the bearing capacity of the rod after buckling can be fully used, but the hot-rolled stainless steel pipe does not allow local buckling of the section.

2. The causes of residual stress in hot-rolled steel and cold-rolled steel are different, so the distribution on the cross section is also very different. The residual stress distribution on the section of cold-formed thin-wall steel is curved, while the residual stress distribution on the section of hot-tied or welded steel is thin film.

3, the free torsional rigidity of hot-rolled steel is higher than that of cold-rolled steel, so the torsional resistance of hot-rolled stainless steel pipe is better than that of cold-rolled steel.

Product Parameters

Product Name		Hot rolled seamless stainless steel pipe
Type		Steel Pipe
Outer diameter	Round Tube	4mm-200mm
	Square Tube	1010mm-100100mm
	Rectangular Tube	1020mm-50100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of Application		Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications,Construction, Pharmaceuticals, Auto parts, etc.
Certificate		ISO, SGS, BV, etc.
Production Technology		Hot Rolling, Cold Rolling
Edge Processing		Edging, Trimming

Chemical composition of each grade:

Chemical composition	C	Si	Mn	Cr	Ni	S	P	Mo	Ti
304	≤ 0.08	≤1.0	≤ 2.0	18.0～20.0	8.0～10.5	≤ 0.03	≤ 0.035	_	_
304L	≤ 0.03	≤1.0	≤ 2.0	18.0～20.0	8.0～12.0	≤ 0.03	≤ 0.035	_	_
316	≤ 0.03	≤ 0.75	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316L	≤ 0.03	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	_
316Ti	≤ 0.08	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	0.5～0.7
317L	≤ 0.035	≤ 0.75	≤ 2.0	18.0～20.0	11.0～15.0	≤ 0.03	≤ 0.04	3.0～4.0	_
321	≤ 0.08	≤ 0.75	≤ 2.0	17.0～19.0	9.0～12.0	≤ 0.03	≤ 0.045	_	_
347	≤ 0.08	≤ 0.75	≤ 2.0	18.0～20.0	9.0～13.0	≤ 0.03	≤ 0.04	_	_

Performance data of various grades of metal (for reference only) :

Mechanical Properties	Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
304	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
304L	≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV
316	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
316Ti	≥515	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
317L	≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
321	≥520	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV
347	≥515	≥205	≥ 40	≤ 201HB;≤ 95HRB

Physical properties of each grade:

Physical Performance	Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
304	8.03	193	16.9	16.2	72
304L	8.03	193	16.9	16.2	72
316	7.99	193	16	16.2	74
316L	7.99	193	16	16.2	74
316Ti	7.99	193	16	16.2	74
317L	7.99	193	16	16.2	79
321	7.92	193	16.6	16	72
347	7.97	193	16	16.3	72

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
