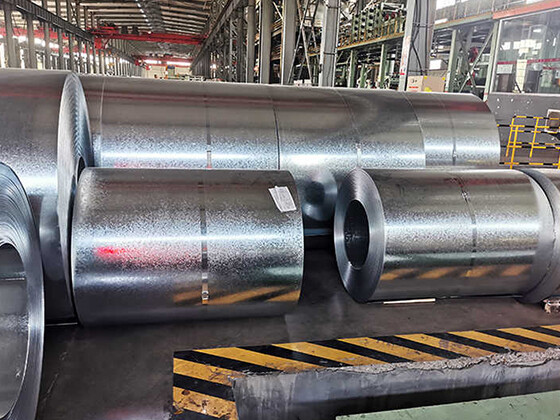

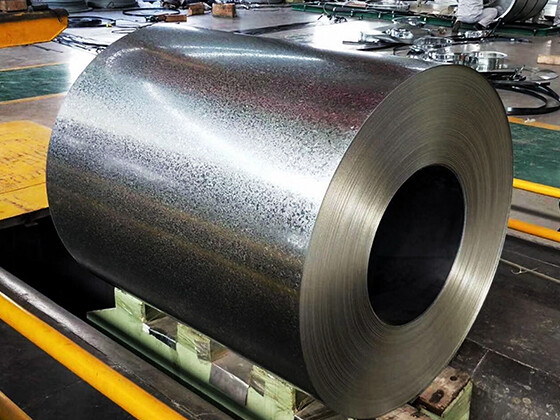

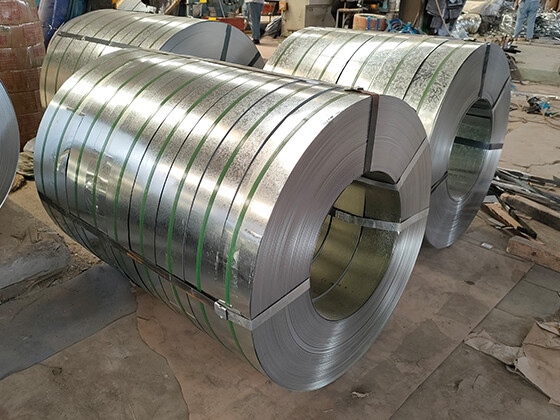

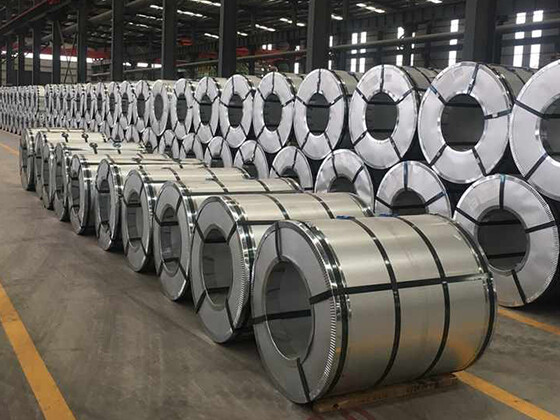

DIN/EN DX51D+Z Hot-dip Galvanized Steel Coil
Galvanized steel plate is a steel plate with a layer of zinc plated on the surface. Galvanizing is an economical and effective anti-corrosion method that is often used. About half of the world's zinc production is used in this process. Galvanized steel plate is to prevent corrosion on the surface of the steel plate to extend its service life, coated with a layer of metal zinc on the surface of the steel plate, the zinc-coated steel plate is called galvanized plate.
Tel:+86 18102185984
Whatsapp:8618102185984
E-mail
Contact us
PRODUCTS

All steel products are available worldwide

Product details

Grade examples: DX51D+Z(or ZFAZ), DC51D+Z(or ZFAZ), DD52D+Z (or ZFAZ) DX: the letter D indicates flat steel for cold forming, the second letter if X, on behalf of the rolling state of the substrate is not specified; If the second letter is C, it means that the substrate is specified as a cold-rolled substrate; If the second letter is D, it means that the substrate is specified as a hot-rolled substrate;

51~57: two digits indicate the steel grade number; Two digits after a D is the code of hot-dip galvanizing;

Z indicates that the coating is pure zinc, ZF indicates galvanized iron alloy, and AZ indicates aluminum-zinc plating.

Therefore: DX51D+Z means that the product is used for cold forming, flat steel, the substrate state is not specified, the steel grade serial number is 51, pure zinc coating, hot plating products.

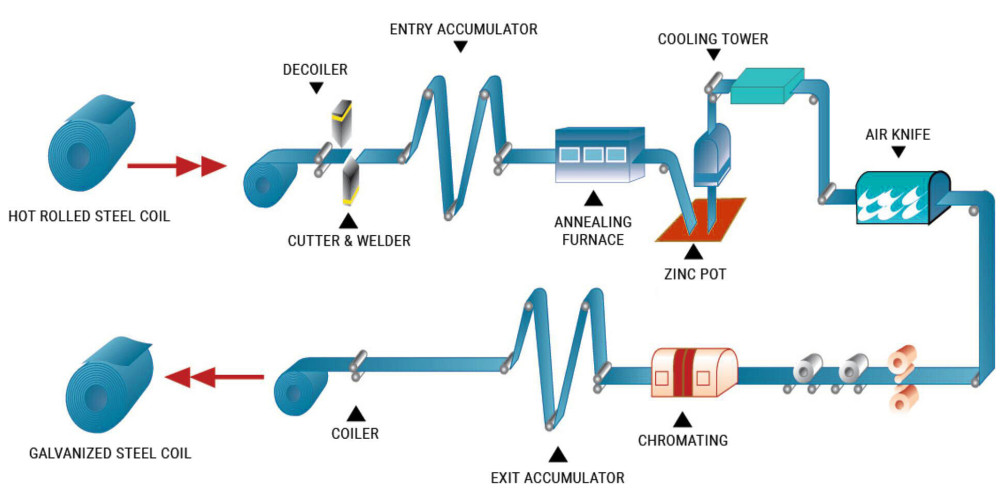

Production process:

Product name

Galvanized Steel Sheet

Grade

SPCC,SPCD,SPCE,ST12-15,DC01-06,Q195A-Q235A,Q195AF-Q235AF, Q295A(B)-Q345A(B)，Dx51d+Z, Dx53d+Z,SGCC,SGHC,SGCD

Standard

GB,JIS,DIN,AISI,ASTM

Thickness

0.2-3.mm or according to customer's special request

Width

600mm to 1500mm, all available.

Elongation

Min.25%

Zinc coating weight

60g/m2-600g/m2

Tensile strength

28.1 - 49.2kgf/mm2

Edge

Mill edge, cut edge

Surface

Pre galvanized, hot dip galvanized, color coated, ect.

Trade Term

FOB,CIF,CFR,EXW,etc.

Price Term

T/T,Western Union,Paypal,Apple Pay,Google Pay,D/A,D/P,MoneyGram

Application

1. Refrigerator shutter &side panels, Washer, Freezers, Air conditions,2. Rice Cooker, Microwave Ovens, Water Heaters, Sterilization Cabinets, Range Hoods, Computer Panels , DVD/DVB panels, TV back panel etc.

Delivery times

Delivered within 7 days after the receipt of deposit




We will provide free service (please consult the sales staff)

Surface Treatment Type

Code

Features

Chromic Acid Treatment

C

Good corrosion resistance, suitable for bare state

Chromic Acid Treatment+Oiling

S

Good corrosion resistance

Phosphoric Acid Treatment (Including Sealing Treatment)

P

Have a certain corrosion resistance, good paint performance

Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling

Q

Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage

Phosphoric Acid Treatment (Excluding Sealing Treatment)

T

Have a certain corrosion resistance, good paint performance

Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling

V

Has a certain corrosion resistance, good paint performance, and prevent rust

Oiling

O

Prevent rust during transportation and storage

No Treatment

M

Suitable for immediate painting


Chemical Composition(%)

Standard

Grade

C

Si

Mn

P

S

Ti

Galvanized sheet for cold forming

DX51D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX52D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX53D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX54D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX56D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX57D+Z

0.12

0.5

0.6

0.1

0.045

0.3


Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
