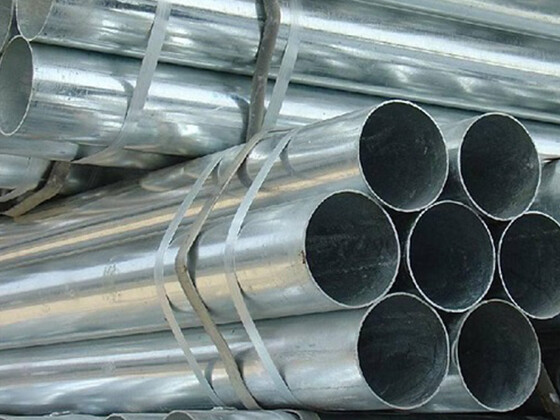

GB-T3091 Ordinary galvanized welded steel pipe
The national standard "Welded Steel pipe for low-pressure fluid transportation" (GB/T 3091-2015), by TC183 (National Steel Standardization Technical Committee) centralized, TC183SC1 (National Steel Standardization Technical Committee Steel pipe Branch) implementation, the competent department for the China Iron and Steel Industry Association.
Tel:+86 18102026584
Whatsapp:8618102026584
E-mail
Contact us
PRODUCTS

All steel products are available worldwide

Product details

Radius

This standard specifies the size, shape, weight, technical requirements, test methods, acceptance rules, packaging, marking and quality certificates of welded steel pipes for low-pressure fluid transportation.

This standard is applicable to water, air, heating steam, gas and other low pressure fluid transportation welding steel pipe.

This standard includes straight seam high frequency resistance welding (ERW) steel pipe, straight seam submerged arc welding (SAWL) steel pipe and spiral seam submerged arc welding (SAWH) steel pipe, and their different requirements are marked, and not marked at the same time applicable to straight seam high frequency resistance welding steel pipe, straight seam submerged arc welding steel pipe and spiral seam submerged arc welding steel pipe.


Production process:

Product Name

GB-T3091 Ordinary galvanized welded steel pipe

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI etc.

Material type

Q195 Q235A A35 A53 A106 S235 S355 Dx51d+Z Dx52d+Z Dx53d+Z,etc.

Outer Diameter

Seamless: 1/4"-36"

Welding: 21.3mm-3620mm

Round Tube: 1/2"-10"

Square Tube/Rectangular Tube: 15x15mm-400x600mm

Wall Thickness

Seamless: 1.25mm-50mm

Welding: 1.65mm-65mm

Wall Thickness

1MM~12MM as the requirement

Outer Diameter

21.3MM~219.1MM

Length

5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques

Zinc Coating

30g-275g

Technique

Seamless / ERW(GALVANIZED)

Packing

Bundle, or with all kinds of colors PVC or as your requirements

Certificate

CE, tisi, KS, JIS, GS, ISO9001

Delivery Time

within 7 days

Other Services

Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.




Galvanized pipe size specification table


Specification

Galvanized pipe measuring 6 meters

Welded pipe measuring 6 meters

Number

Nominal inside diameter

Inches

OD/mm

WT/mm

Minimum wall thickness

Weight per meter/kg

Weight per stick/kg

Weight per meter/kg

Weight per stick/kg

1

DN15 galvanized pipe

1/2

21.3

2.8

2.45

1. 35

8.14

1.28

7.68

2

DN20 galvanized pipe

3/4

26.9

2.8

2.45

1. 76

10. 56

1. 66

9.96

3

DN25 galvanized pipe

1.0

33.7

3.2

2.8

2.554

15.32

2.41

14.46

4

DN32 beryllium zinc tube

1.25

42.4

3.5

3.06

3.56

21.36

3.36

20.16

5

DN40 galvanized pipe

1.5

48.3

3.5

3.06

4.1

24.6

3.87

23.22

6

DN50 plated front tube

2.0

60.3

3.8

3.325

5.607

33.64

5.29

31.74

7

DN65 galvanized pipe

2.5

76.1

4.0

3.5

7.536

45.21

7.11

42.66

8

DN80 galvanized pipe

3.0

88.9

4.0

-

8.88

53.28

8.38

50.28

9

DN100 galvanized pipe

4.0

114.3

4.0

-

11.53

69.18

10.88

65.28

10

DN125 galvanized pipe

5.0

140

4.5

-

15.942

98.65

15.04

90.24

11

DN150 galvanized pipe

6.0

168.3

4.5

-

19.27

115.62

18.18

109.08

12

DN200 galvanized pipe

8.0

219.1

6.0（Welded pipe）

-

-

-

31.53

189.18

13

DN200 galvanized pipe

8.0

219.1

6.5（Hot dip galvanizing）

-

36.12

216.7

-

-


Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.


WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
