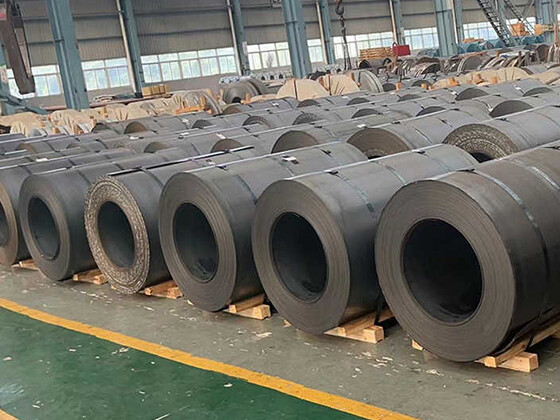

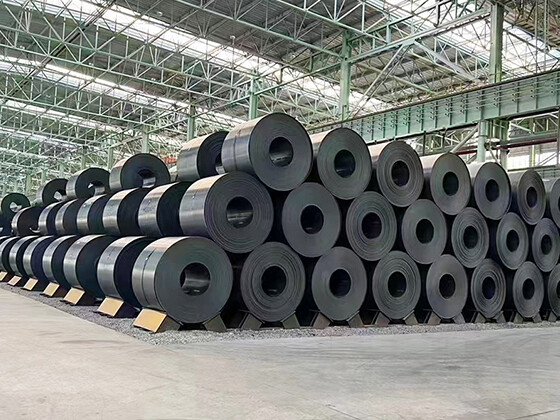

SS400/SS330 JIS Black Carbon Steel Coil
In the grade of Japanese steel (JIS series), ordinary structural steel is mainly composed of three parts: the first part indicates the material, the second part indicates different shapes, types, uses, and the third part indicates the characteristic number, which is generally the lowest tensile strength. For example: SS400 - the first S means Steel, the second S means "Structure" (Structure), 400 tensile strength lower limit of 400MPa The same way SS330 means tensile strength of 330MPa

Product details

ss400 is a kind of marking method of Japanese steel material and a kind of judging standard. Foreign standard structural steel is often classified by tensile strength, such as SS400 (Japan is so marked), of which 400 means that the minimum value of σb is 400MPa Ultra-high strength steel refers to σb≥1373 Mpa steel.Due to moderate carbon content, good comprehensive performance, strength, plasticity and welding properties have been better matched, the most widely used.

SS330 is a kind of high strength, corrosion resistance and wear resistance steel, because of its excellent properties, it is widely used in machinery manufacturing, construction engineering and shipbuilding. The tensile strength of SS330 is as high as 400-540 mpa, which is a high-strength steel with good mechanical properties. At the same time, SS330 has good plasticity and toughness, which can meet different material processing and process requirements.

SS490 is a hot-rolled pickling steel strip widely used in general structural applications. It is known for its exceptional strength, durability and versatility and is suitable for a variety of construction projects. SS490 is produced by a hot rolling process and then pickled to remove surface impurities and oxide layers, resulting in a clean and smooth surface finish. This steel strip has good weldability, machinability and formability, and is easy to manufacture and assemble.


Product information:

Name

SS400/SS330 JIS Black Carbon Steel Coil

Type

SS330 SS400 SS490

Alloy Or Not

Non-Alloy

Production Process

Hot Rolled Carbon Steel

Width

1000mm,1250mm,1500mm,Or customized Size

Length

1m-12m, or Customized Size

Thickness

3.0mm, 8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,20.0mm,20.0mm,30.0mm,40.0mm,50.0-100mm,Or customized Size

Delivery Conditions

Rolling, Annealing, Quenching, Tempered or Standard

Standards

JIS G310

Standard

AiSi, ASTM, bs, DIN, GB, JIS

Certificate

CE, tisi, KS, JIS, GS, ISO9001

Delivery Time

within 3-5 days




SS400 Chemical composition(%)

C

Si

Mn

P

S

≤0.17

≤0.50

≤1.40

≤0.035

≤0.035

Sample size of SS400:Sample blank size is 18mm

SS400 Tensile Strength (MPa):340-470

SS400 Yield Point (MPa):235

SS400 elongation after breaking(%) :24

SS400 impact power Akv-20℃:≤27J

-------------------------------------------------------------------

SS330 Chemical composition(%):

C

Si

Mn

P

S

≤0.15

≤0.30

≤0.95

≤0.025

≤0.025

SS330  Mechanical property:

Thickness/mm

Tensile strength   σs (MPa)

Yield strength   σs (MPa)

Rate of elongation  σ %

t≤5

330-430

≥205

≥26

5<t≤16

330-430

≥205

≥21

t>16

330-430

≥195

≥26

-------------------------------------------------------------------

SS490 Chemical composition:

(C) : up to 0.22%, (Si) : up to 0.25%, (Mn) : up to 1.40%, (P) : up to 0.035%, (S) : up to 0.035%

SS490 Mechanical Properties:

Tensile strength: 490-610 MPa

Yield strength: minimum 275 MPa

Elongation: minimum 16%

These values indicate the strength and ductility of SS490. The steel strip shows moderate tensile strength, which refers to its ability to resist tension without breaking. Yield strength represents the level of stress at which a material begins to permanently deform, while elongation measures the amount of deformation a steel can withstand before it fails.

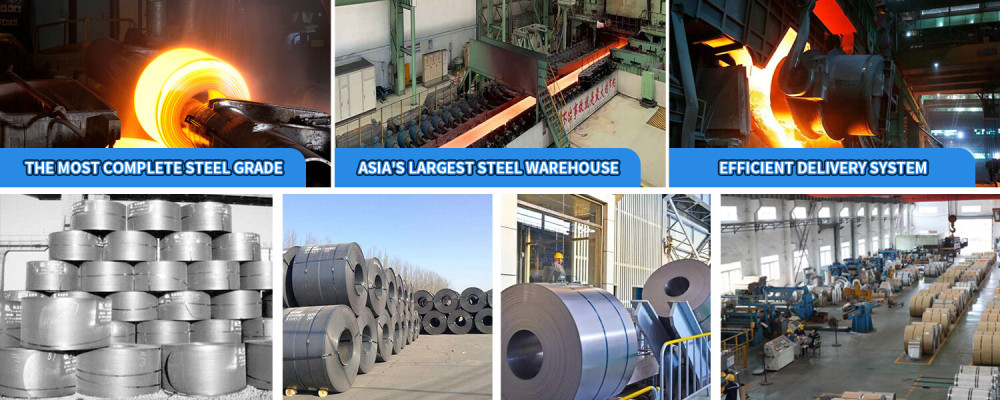

WORKSHOP EQUIPMENT

The company mainly produces hot rolled steel plate, cold rolled steel plate, carbon steel coil, carbon steel pipe, API pipe, structural steel, steel bar and other products. The company has obtained ISO9001 quality system certification and European CE certification, and provides MTC quality certification according to EN10204.3.1

Companies adhering to the "integrity, quality, win-win" spirit of enterprise, in the years of pioneering and enterprising, never forget the original aspiration, accumulated strength, with wisdom and sweat to lead the development of iron and steel industry.

The annual production capacity of cold rolled steel plate production line is 600,000 tons, and the production specification is 0.12-1.2mm*750-1250mm. The production line adopts advanced full hydraulic on the road, flexible and stable control, combined with thickness gauge to achieve automatic control of AGC plate thickness, so as to ensure product quality.
